KLAS 맞춤 제작
나만의 스위치 플레이트 디자인
미리보기는 참고용 이미지입니다. 비율은 북미 규격 플레이트 사이즈를 기준으로 합니다.
- 01 사이즈벽 박스에 맞게 1구부터 6구까지.
- 02 각 위치스위치, 디머, 콘센트, 데이터 포트를 하나의 플레이트에 조합하십시오.
- 03 마감6가지 솔리드 브라스 플레이트 마감과 토글 & 노브 마감.
- 04 마무리 디테일각 라벨을 각인하면 주문 제작으로 만들어 드립니다.
마감이 고민되십니까? 먼저 직접 조명 아래에서 확인해 보십시오.
기술 정보
사양 & 설치
디자인에 맞는 플레이트 사이즈, 배선 및 다운로드 가능한 사양서
사양 & 설치
디자인에 맞는 플레이트 사이즈, 배선 및 다운로드 가능한 사양서플레이트 사이즈는 위의 디자인에 따라 업데이트됩니다. 각 디바이스를 열어 전체 사양서를 확인하거나, 전기 기술자를 위해 PDF로 다운로드하십시오. 설치 가이드: 스위치 플레이트 · 콘센트 · 디머.
- Back box
- Screw holes
- 83.5 mm · 3.29 in apart (top to bottom), standard inch screws
- Standard
- North American (US & Canada), 120 V
- In the box
- Solid brass plate, devices fitted, matching screws
KLAS

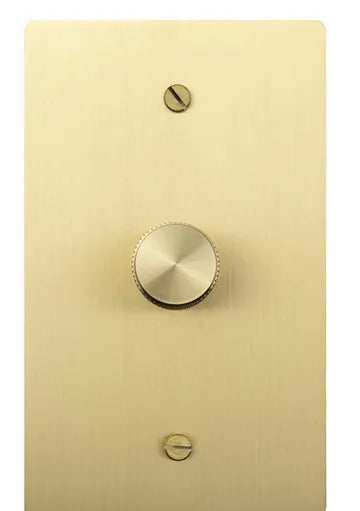

Rotary dimmers
Single-pole (grounded or basic) & 3-way · solid brass plate · knurled knob · hand-brushed, naturally unique on every plate
| Single-pole, grounded | Single-pole, basic | 3-way | |
| Use | Light controlled from one place | Light controlled from two or more places | |
| Operation | Press the knob for on/off, rotate to dim | Rotate to dim | Press the knob for on/off, rotate to dim |
| Ground wire | Yes | No (2 wires: line in, load out) | Yes (4 leads: black = common, red + red = travellers, green = ground) |
| Dimming type | Triac (forward phase) | ||
| Voltage | 110–130 V AC, 50/60 Hz | 110–120 V AC, 50/60 Hz | 108–132 V AC, 60 Hz |
| LED load | 3–150 W (dimmable LED) | 150 W dimmable LED · 150 W dimmable CFL | |
| Incandescent / halogen | 40–600 W | 40–250 W | 40–600 W |
| Rated life | 10,000+ cycles | ||
| Protection | Overheat protection · flame-retardant PC housing · 4 kV dielectric test | ||
| Neutral wire | Not required to confirm | Not required | Not required |
| Device size | to confirm | 105 × 54 × 43 mm (4.1 × 2.1 × 1.7 in), 88 g · accepts 18 AWG wire | |
| Fits | Standard 1-gang US/Canada box (per gang) | ||
| Certification | UL, US & Canada · UL file E522988 | UL, US & Canada · UL file E511941 | cULus, US & Canada · UL 1472 (solid-state dimming controls) · UL file E522988 |
| Plate | 2 mm solid brass on a 2 mm acrylic frame | ||
| In the box | Plate, dimmer fitted, matching screws | ||
Which single-pole? Both dim the same lights. The grounded dimmer also switches on and off with a press of the knob, so the light comes back at the level you left it; it suits any box, including new plastic boxes. The basic dimmer only rotates; choose it for a metal box (which grounds the plate through its screws) or to replace a dimmer in an older box with no ground wire. North American codes generally require a metal plate to be grounded; ask your electrician if unsure.

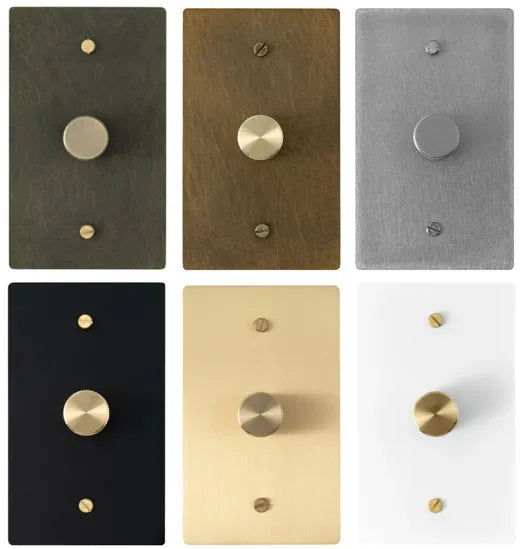

Bronze · Antique Brass · Brushed Nickel
Matte Black · Satin Brass · White
Plate sizes
* 5- and 6-gang estimated (+45 mm per gang) — to confirm
| Gangs | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Width (mm) | 72 | 120 | 165 | 210 | 255* | 300* |
| Width (in) | 2.83 | 4.72 | 6.50 | 8.27 | 10.04* | 11.81* |
| Height | 120 mm · 4.72 in (all sizes) | |||||
| Screw holes | 83.5 mm · 3.29 in apart (top to bottom) · standard inch screws | |||||
Wiring · single-pole
Basic dimmer: same, without the ground wire to the dimmer. Ground the light fitting as normal.
Wiring · 3-way dimmer
Pair the 3-way dimmer with a KLAS 3-way toggle at the other location. For three or more locations, add a 4-way toggle in between. Use one dimmer per light circuit.
KLAS0–10V rotary dimmer · low voltage
For LED lights with 0–10V or 1–10V dimmable drivers · solid brass plate · knurled knob
| Type | 0–10V / 1–10V rotary dimmer (control signal only) |
|---|---|
| Works with | LED fittings with a 0–10V or 1–10V dimmable driver: downlights, track lights, wall washers and similar |
| Control signal | 0.5–10 V DC · up to 40 mA dimming current |
| Load | Up to 150 W of LED, through compatible drivers |
| Dimming | Smooth, stepless, 5–100% · no flicker or hum |
| On / off | Does not switch power. Pair it with a toggle (or the driver's own switching) to turn the light off. |
| Wires | Brown = DIM+ · Blue = DIM– · 13 in (33 cm) leads |
| Device size | 0.9 × 1.3 × 1.3 in (23 × 33 × 33 mm), including knob |
| Operating temperature | –15 °C to +50 °C (5 °F to 122 °F) |
| Mounting | Recessed in a standard box, or surface-mounted |
| Certification | to confirm |
| Plate | 2 mm solid brass on a 2 mm acrylic frame · sizes as for all KLAS plates (1-gang 72 × 120 mm, 2.83 × 4.72 in) |
| In the box | Plate, dimmer fitted, matching screws |
Bronze · Antique Brass · Brushed Nickel
Matte Black · Satin Brass · White
Wiring
Important
- Never connect to mains power. It connects only to the driver's dimming terminals.
- Mains power goes to the LED driver, switched by a separate toggle if needed.
- In a multi-gang plate with mains devices, keep low-voltage and mains wiring separated in the box (a divider is usually required by code).
- Check the driver is 0–10V or 1–10V dimmable; standard (triac) LED drivers won't work with it.
KLASFan speed switch
Rotary speed control for ceiling paddle fans · solid brass plate · knurled knob
| Rating | 120 V AC, 60 Hz |
|---|---|
| For | Ceiling paddle fans only · one fan per control |
| Control | Rotary, off and variable speed |
| Wires | Black = hot · White = to fan · Green = ground · copper wire only |
| Fan with a light | The light needs its own separate wiring and switch; this control runs the fan only |
| Smart fans | Not compatible with fans that have built-in smart or remote systems. Replaces a standard stepped or stepless control. |
| Fits | Standard 1-gang US/Canada box (per gang) |
| Certification | UL, US & Canada · fan-speed controls · UL file E312727 |
| Plate | 2 mm solid brass on a 2 mm acrylic frame · sizes as for all KLAS plates (1-gang 72 × 120 mm, 2.83 × 4.72 in) |
| In the box | Plate, control fitted, matching screws |
Bronze · Antique Brass · Brushed Nickel
Matte Black · Satin Brass · White
Wiring
Do not use for
- Outlets (receptacles)
- Lights, including fluorescent
- Transformers, motor appliances, or anything supplied by a transformer
- More than one fan
Using it
- Turn the dial about half a turn to start the fan (the motor needs a burst of power to start), then set the speed you want.
- If the speed suddenly drops, the dial is between steps; turn it a little further.
Installation
Turn off the breaker first. Install by a licensed electrician, following the NEC / CEC and local codes. If the wall box has no ground, cap or remove the green wire as the code allows (NEC 404.9(B), formerly 380-9(b)).
KLAS

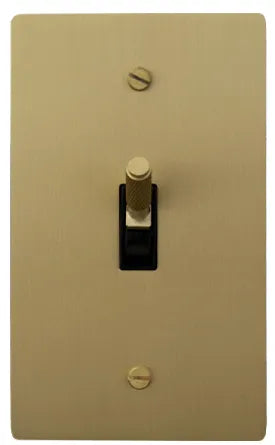

Toggle switch
Solid brass plate · knurled brass lever · hand-brushed, naturally unique on every plate
| Single-pole & 3-way | 4-way | |
| Use | One location (single-pole) or two locations (3-way) | Third or more location, fitted between two 3-ways |
| Voltage | 120 V AC | 110–120 V AC |
| Current | 15 A to confirm | 15 A |
| Neutral wire | Not required | |
| Fits | Standard 1-gang US/Canada box (per gang) | |
| Certification | cULus Listed, US & Canada · UL 20 / CSA C22.2 No. 111 (general-use snap switches) · UL file E313169 catalogue no. to confirm | |
| Switch body | Black or white (ivory to confirm) | |
| Plate | 2 mm solid brass on a 2 mm acrylic frame to confirm | |
| In the box | Plate, switch fitted, matching screws | |

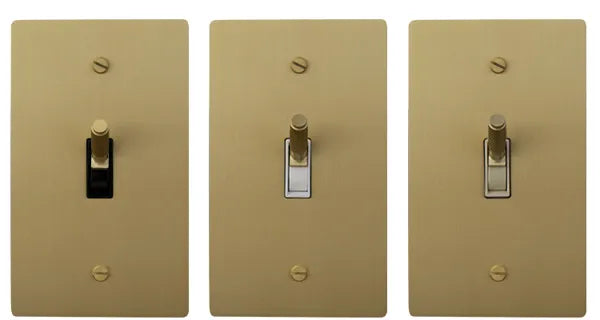

Switch body options shown on satin brass
Plate sizes
| Gangs | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Width (mm) | 72 | 120 | 165 | 210 | 255* | 300* |
| Width (in) | 2.83 | 4.72 | 6.50 | 8.27 | 10.04* | 11.81* |
| Height | 120 mm · 4.72 in · screw holes 83.5 mm (3.29 in) apart, inch screws | |||||
Wiring · single-pole
Wiring · 3 or more locations
Two locations: 3-way + 3-way. Each extra location adds one 4-way in between. Ground to every switch.
KLASOutlets
Tamper-resistant receptacles in a solid brass plate · hand-brushed, naturally unique on every plate

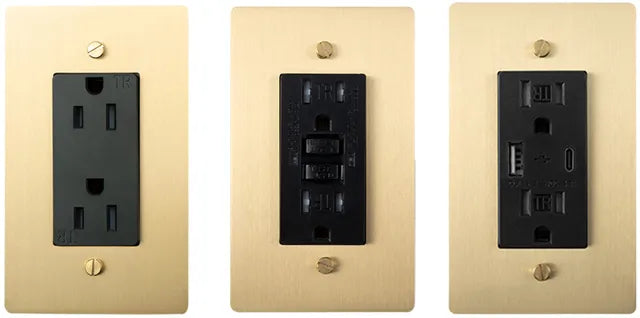

Duplex · GFCI · USB-A + USB-C, shown on satin brass. Dual USB-C below
| Duplex outlet | GFCI outlet | USB outlet | Dual USB-C outlet | |
| Use | Everyday sockets | Near water: kitchens, bathrooms, laundry, outdoors. Test / reset buttons | Two sockets plus built-in charging | Two sockets plus two fast-charging USB-C ports |
| Rating | 15 A or 20 A · 120 V AC. The 20 A version has a T-shaped neutral slot and must be on a 20 A circuit; a 15 A outlet is allowed on a 20 A circuit when there are two or more outlets on it. Dual USB-C: 15 A 20 A version to confirm | |||
| Tamper-resistant | Yes (TR), as required in US homes | |||
| USB ports | None | None | 1 × USB-A, 1 × USB-C · output (W) to confirm | 2 × USB-C · output (W) to confirm |
| Fits | Standard 1-gang US/Canada box (per gang) GFCI/USB depth to confirm | |||
| Certification | UL, US & Canada · UL 498 / CSA C22.2 No. 42 (receptacles) · UL file E481372 catalogue no. per device to confirm; GFCI also needs UL 943 | |||
| Device colour | White, black or ivory | |||
| Plate | 2 mm solid brass on a 2 mm acrylic frame | |||
| In the box | Plate, outlet fitted, matching screws | |||

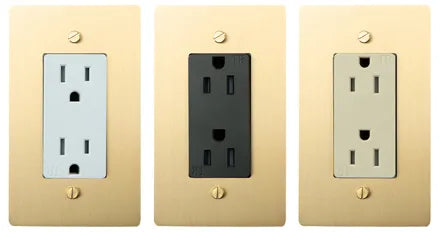

Device colours: white · black · ivory

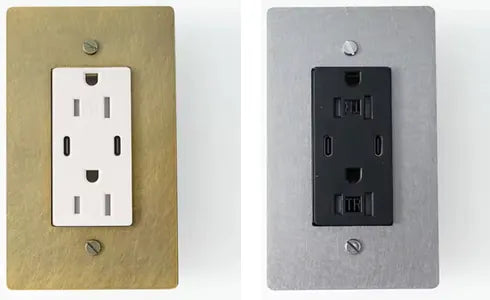

Dual USB-C outlet · two sockets + two USB-C ports, white or black
Plate sizes
| Gangs | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Width (mm) | 72 | 120 | 165 | 210 | 255* | 300* |
| Width (in) | 2.83 | 4.72 | 6.50 | 8.27 | 10.04* | 11.81* |
| Height | 120 mm · 4.72 in · screw holes 83.5 mm (3.29 in) apart, inch screws | |||||
Wiring
GFCI: incoming power to LINE terminals; LOAD terminals protect outlets further down the circuit.
Installation
Install by a licensed electrician with the power off at the breaker, following local codes. Press TEST then RESET on a GFCI after installation, and monthly.
KLAS
Data & phone ports
CAT 6 network and RJ11 telephone jacks in a solid brass plate · hand-brushed, naturally unique on every plate
| CAT 6 data port | RJ11 telephone port | |
| Use | Wired internet: TVs, computers, game consoles, Wi-Fi access points | Landline phone, fax, alarm or DSL line |
| Category | CAT 6 · up to 1 Gb/s at 100 m, 10 Gb/s on shorter runs (about 55 m) | CAT 3 voice grade |
| Jack | RJ45 (8 contacts) termination type to confirm | RJ11 4 or 2 contacts to confirm |
| Wiring standard | T568B or T568A (match the other end of the cable) | USOC, line 1 on the centre pair |
| Power | Low voltage only, no mains connection | |
| Fits | North American standard: 1-gang box or low-voltage mounting bracket (per port). Back box sold separately | |
| Certification | to confirm | |
| Insert colour | White or black | |
| Plate | 2 mm solid brass on a 2 mm acrylic frame | |
| In the box | Plate, jack fitted, matching screws. Cable not included | |
Antique Brass
Bronze
Brushed Nickel
Satin Brass
Matte Black
Shown with the black insert. Mix with switches and outlets on one plate in the designer.
Plate sizes
| Gangs | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|
| Width (mm) | 72 | 120 | 165 | 210 | 255* | 300* |
| Width (in) | 2.83 | 4.72 | 6.50 | 8.27 | 10.04* | 11.81* |
| Height | 120 mm · 4.72 in · screw holes 83.5 mm (3.29 in) apart, inch screws | |||||
Wiring · CAT 6 (T568B)
T568A swaps the orange and green pairs. Use the same standard at both ends. Keep the twists to within 13 mm (½ in) of the jack.
Wiring · RJ11 telephone
Older cable may use blue / white-blue for line 1 and orange / white-orange for line 2.
Installation
Install by a qualified installer, following local codes. Keep data and phone cable away from mains wiring: do not share a box with power cables unless a barrier separates them (NEC 800.133). On a plate that also has switches or outlets, the data or phone position needs its own box section or bracket. Test each CAT 6 run with a cable tester after fitting.
설치플레이트 설치
4단계, 도면, 모든 디바이스의 전체 배선 가이드
플레이트 설치
4단계, 도면, 모든 디바이스의 전체 배선 가이드플레이트는 디바이스가 장착된 상태로 배송됩니다. 전원 배선은 면허를 보유한 전기 기술자가 작업해야 합니다.
- 01전원 차단 및 확인해당 회로의 차단기를 내리고 전압 테스터로 박스 안의 전선을 확인합니다.
- 02리드선 배선해당 디바이스의 가이드에 표시된 대로 와이어 커넥터로 각 디바이스의 리드선을 건물 배선에 연결합니다. 모든 디바이스를 접지하십시오.
- 03플레이트 장착전선을 박스 안으로 접어 넣고 플레이트의 수평을 맞춘 뒤, 구당 제공된 나사 2개로 고정합니다. 고르게 조이되 과도하게 조이지 마십시오.
- 04전원 복구 및 테스트차단기를 다시 올리고 모든 위치를 테스트합니다. GFCI의 경우 TEST를 누른 후 RESET을 누르십시오.
Full guides with wiring tables

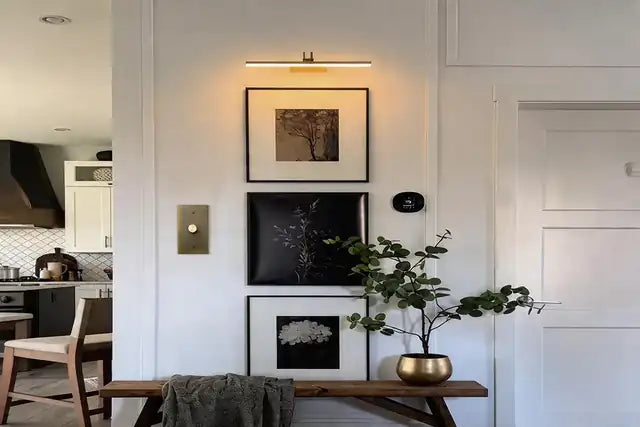

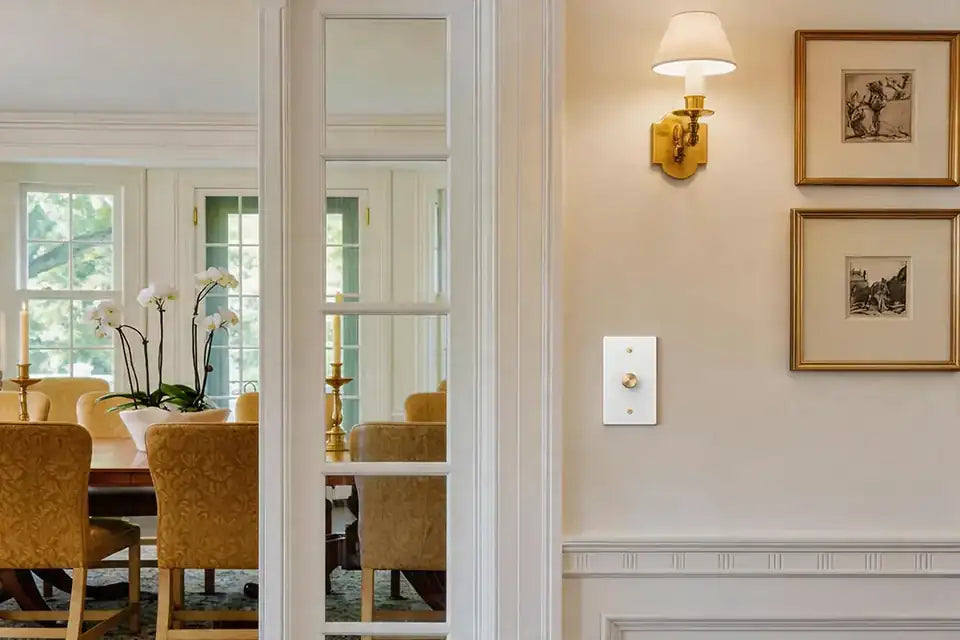

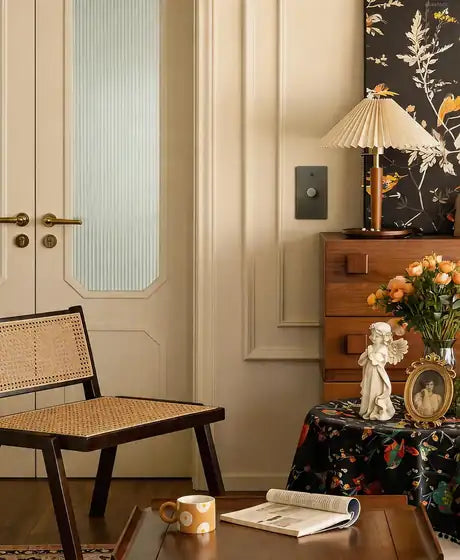

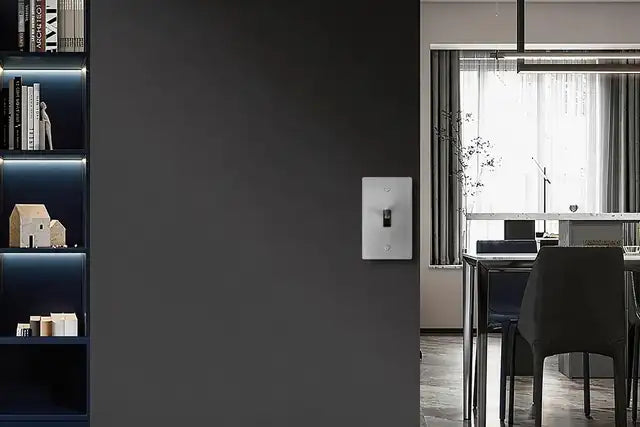

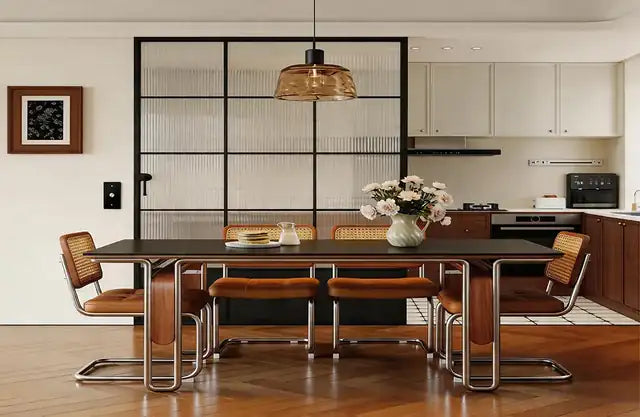

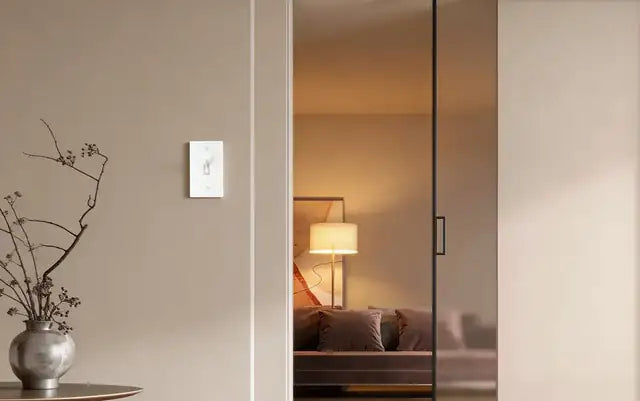

공간 속에서 마감 확인하기
실제 공간, 실제 조명 조건
고객 후기
- GWGord W.Verified BuyerReviewingKLAS / Brass Mixed Dimmer Switch (3-Gang)I recommend this productRated 5 out of 5 stars3 hours agoDimmer switches
Great
Product
- JHJustin H.Verified BuyerReviewingKLAS / Brass Light Switch (1-Gang)I recommend this productRated 5 out of 5 starsYesterdaySeemingly small upgrade with a big impact
Outfitted our entire house in these in a recent remodel. They get noticed and complemented often. Love them.
- AKAndrea K.Verified BuyerReviewingKLAS / Brass Mixed Dimmer Switch Outlet (2-Gang)I recommend this productRated 5 out of 5 stars1 month agoLuxury look and feel
I was very impressed with the product. It is a showpiece in my home that attracts a lot of compliments. The brass construction is solid and weighty, and the switch itself moves like a high quality stereo equipment knob. I will be buying more of these!
- JSJohn S.Verified BuyerReviewingKLAS / Brass Light Switch (3-Gang)I recommend this productRated 5 out of 5 stars1 month agoClassic Look
Excellent switches for my man cave and garage
- MSMary S.Verified BuyerReviewingKLAS / Brass Rotary Dimmer Switch (1-Gang)I recommend this productRated 5 out of 5 stars2 months agoAll in the details
These switches are the perfect finishing detail on my bathroom remodel. Smooth operation on the dimmers, Someone called them a tactile experience and I agree. Quality craftsmanship.
자주 묻는 질문과 답변
맞춤 플레이트 제작에는 얼마나 걸리나요?
맞춤 플레이트는 주문 제작됩니다. 제작 기간은 디자인에 따라 다르며, 배송일 확인이 필요하시면 문의해 주십시오.
어떤 배선 규격에 맞춰져 있나요?
KLAS 플레이트는 북미 규격 백 박스용으로 제작됩니다. UK 또는 EU 규격이 필요하시면 주문 전에 문의해 주십시오.
어떻게 설치하나요?
맞춤 플레이트를 반품할 수 있나요?
맞춤 제작 및 주문 제작 상품은 반품이 불가능합니다. 환불 정책을 확인하십시오.
주문 전에 마감을 확인할 수 있나요?
네. 원하시는 마감의 KLAS 마감 샘플 또는 6종 전체 세트를 주문하시고, 플레이트를 디자인하기 전에 직접 조명 아래에서 확인해 보십시오.
